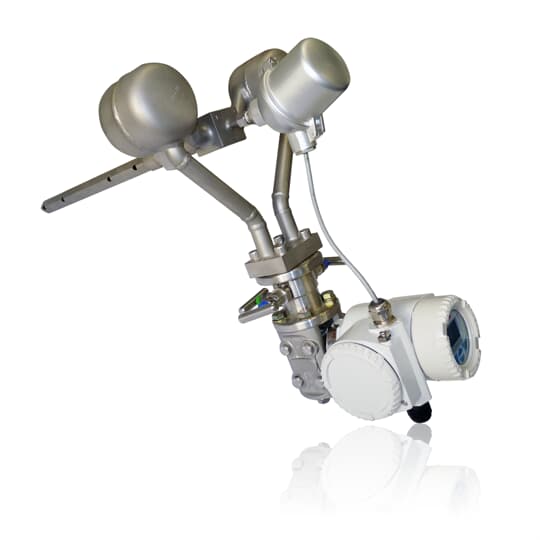

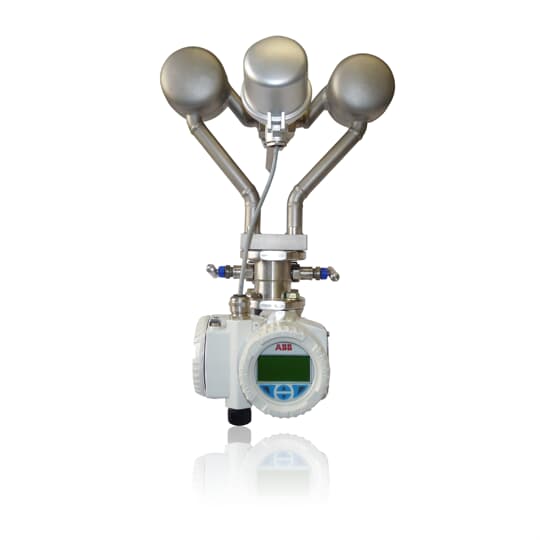

- The 266JSH multiparameter transmitter measures the differential pressure, absolute pressure, and temperature of gases, vapors, and liquids by means of multi-sensor technology. Among these, temperature measurement needs to be realized through an external RTD (Resistance Temperature Detector).
- The 266 series multiparameter transmitters provide high-precision measurement; meanwhile, one instrument can replace multiple traditional transmitters, reducing procurement and installation costs while improving reliability.
- Basic accuracy: ±0.075%
- Reduces process openings to save costs and minimizes potential leak points
- Withstands high static pressure up to 41MPa, meeting the application requirements of power plants, pipelines, or oil and gas production
- A transmitter with truly scalable range (minimum down to 0.05kPa)
- LCD with TTG (Through-The-Glass) window technology, enabling setup and operation without opening the cover
- Replaceable electronic circuit board with self-configuration function
- Flexible process connections, multiple corrosion-resistant wetted material options, and fully welded diaphragm seal
