- Ultrasonic Measurement
- Time-of-Flight Principle

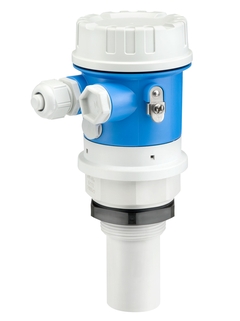

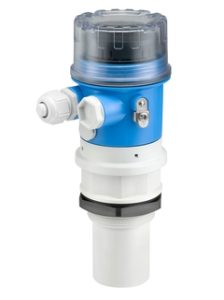

- Prosonic FMU30
- Economical All-Purpose Level Meter, Suitable for Level Measurement of Liquids and Bulk Solids
Product Specification Parameters
- Measurement Accuracy: ±3 mm or ±0.2% of the set measuring range
- Process Temperature: -20…60 °C (-4…140 °F)
- Process Pressure (Absolute Pressure) / Maximum Overpressure Limit: 0.7…3 bar abs (10…44 psi)
- Maximum Measuring Distance:
- Sensor 1-1/2″: 2 m (6.6 ft)
- Sensor 2″: 3.5 m (11 ft)
- Main Wetted Parts: PP/EPDM
Application Fields

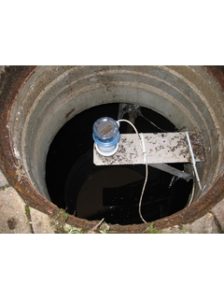

Its application scope includes wastewater treatment plants, process water storage tank loading, and level monitoring of storage tanks and buffer tanks. The FMU30 is equipped with mature software algorithms and a 4-line plain text display that shows reminders and alarm information, ensuring rapid fault response. The display also shows the envelope curve and presents analysis results directly on-site, enabling quick and accurate fault diagnosis.
It is suitable for continuous, non-contact level measurement of liquids, slurries, sludges, and solid lumps. System integration: 4…20 mA. Maximum measuring range: For 1½” sensor – Liquids: 5 m (16 ft); Solids: 2 m (6.6 ft); For 2″ sensor – Liquids: 8 m; Solids: 3.5 m (11 ft).
Advantages
- 4-line plain text display with menu-guided on-site operation, enabling quick and simple instrument commissioning, with 7 languages available.
- On-site envelope curve display for easy instrument fault diagnosis.
- Linearization function (up to 32 points) allows conversion of measured values into length, volume, or flow rate in any unit.
- Non-contact measurement, minimizing maintenance services.
- Can be installed with G1½ or 1½ NPT threads and larger sizes.
- Built-in temperature sensor for automatic correction of sound velocity affected by temperature.
