Product Specification Parameters
- Measurement Accuracy: ±1 mm (0.04 in)
- Process Temperature: -40…+200°C (-40…+392°F)
- Process Pressure (Absolute Pressure) / Maximum Overpressure Limit: Vacuum…20 bar (290 psi)
- Maximum Measuring Distance: 50 m (164 ft)
- Main Wetted Parts: PVDF, PTFE, PEEK
Application Fields

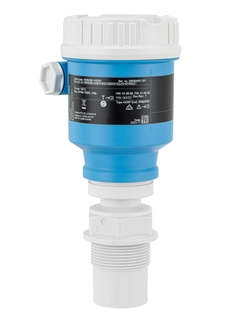

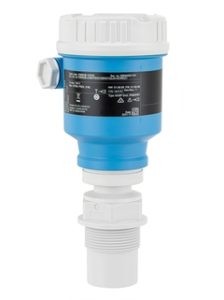

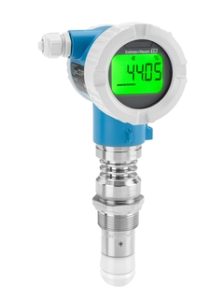

The Micropilot FMR60B is a member of the new generation of 80 GHz radar level transmitters. It performs continuous non-contact level measurement in basic liquid applications, featuring a small-sized process connection. Equipped with a built-in operation wizard, it guides users to easily conduct instrument commissioning, functional safety, and verification testing, ensuring highly convenient operation. Adopting Heartbeat Technology, it supports on-line self-calibration and self-monitoring of the instrument, enabling timely identification of abnormal working conditions, which enhances process safety and improves production efficiency.
The Micropilot FMR60B is suitable for level measurement in free space, with a maximum measuring range of 50 meters. It delivers excellent beam focusing performance for tanks with internal interference devices.
- Process Connection: Threaded or flanged
- Process Temperature: –40…+200°C (–40…+392°F)
- Process Pressure: –1…+20 bar (–14.5…+290 psi)
- Maximum Measuring Range: 50 m (164 ft)
- Measurement Accuracy: ±1 mm (0.04 in)
- W-Band: 80 GHz operating frequency
Advantages

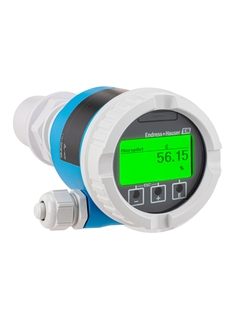

- The human-machine interface (HMI) is intuitive and clear, providing guided instrument commissioning and verification wizards for simple operation.
- Recommended operations are displayed on the screen to help users easily troubleshoot.
- Guided SIL locking, verification testing, and functional safety testing operations reduce the risk of systematic errors.
- Safety-oriented design concept, developed in compliance with the IEC 61508 standard.
- Adopts Heartbeat Technology, which supports on-line self-monitoring, self-calibration, and self-diagnosis of the instrument to improve productivity.
