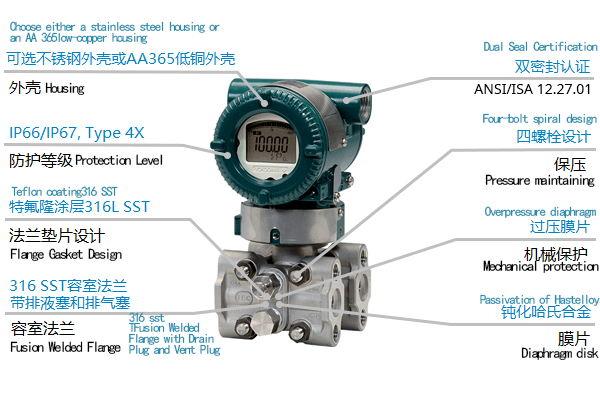

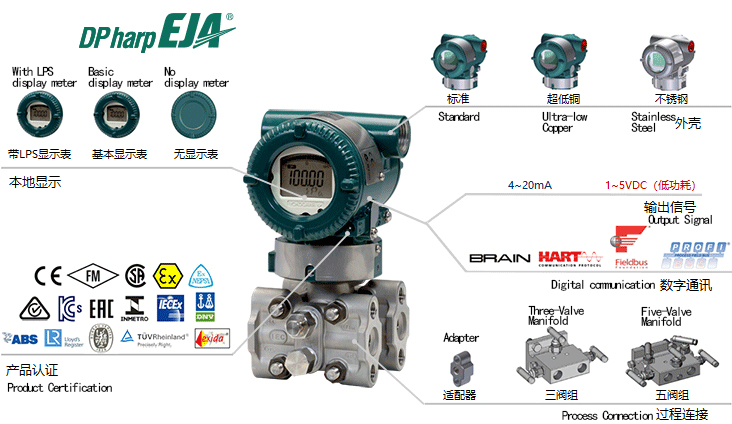

The EJA110E High-Performance Differential Pressure Transmitter
The EJA110E High-Performance Differential Pressure Transmitter adopts single-crystal silicon resonant sensor technology and is suitable for measuring the flow rate, liquid level, density, and pressure of liquids, gases, or vapors. It converts the measured differential pressure into a 4–20mA DC current signal for output, and can measure, display, or remotely monitor static pressure. It features fast response, remote setting, self-diagnosis, and other functions.
Functional Characteristics of the EJA110E:
- Accuracy: ±0.055% (optional accuracy: ±0.04%)
- Stability: ±0.1% URL/10 years (URL = Upper Range Limit, upper range limit)
- Response time: 90 milliseconds
- TUV and Exida SIL 2 / SIL 3 certifications
- Maximum working pressure: 2,300 psi (optional: 3,600 psi)
- Local Parameter Setting (LPS)
- Supports communication protocols including HART 5/7, low-power HART (1~5V DC), FF Fieldbus, PROFIBUS PA, and BRAIN.
