EJA120E Micro-Differential Pressure Transmitter

Product Description

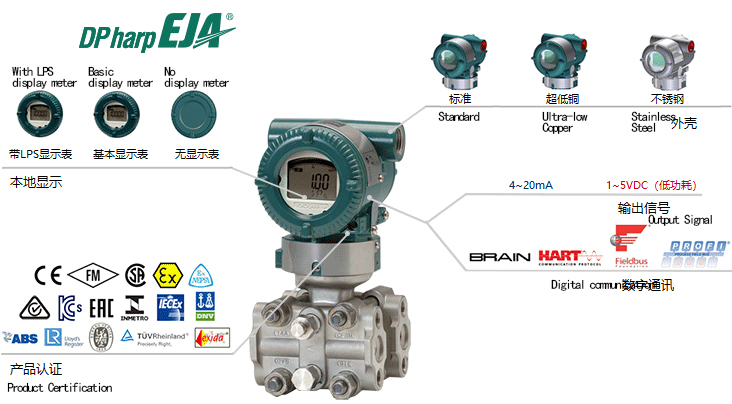

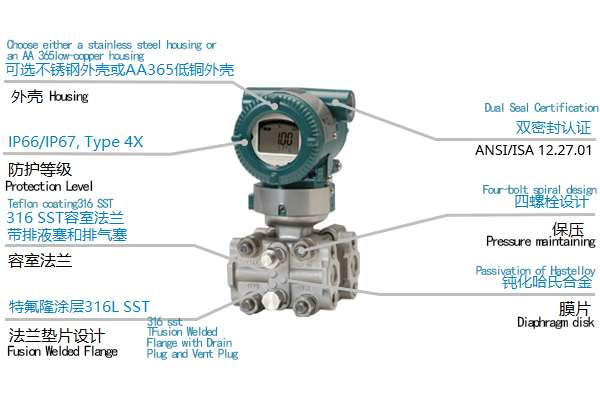

EJA120E High-Performance Differential Pressure Transmitter

The EJA120E high-performance differential pressure transmitter adopts single-crystal silicon resonant sensor technology, and is suitable for measuring the flow rate, liquid level, density and pressure of liquids, gases or vapors. The EJA120E converts the measured differential pressure into a 4–20mA DC current signal for output, and features functions such as fast response, remote setting and self-diagnosis.

Functional Characteristics of the EJA120E:

Accuracy: ±0.2% (optional accuracy: ±0.09%)
Stability: ±0.3% per year
Response time: 150 milliseconds
TUV and Exida SIL 2/3 certifications
Local Parameter Setting (LPS)
True Draft Range design
Supports communication protocols including HART 5/7, HART (1~5V DC) low-power type, FF Fieldbus, PROFIBUS PA and BRAIN.
