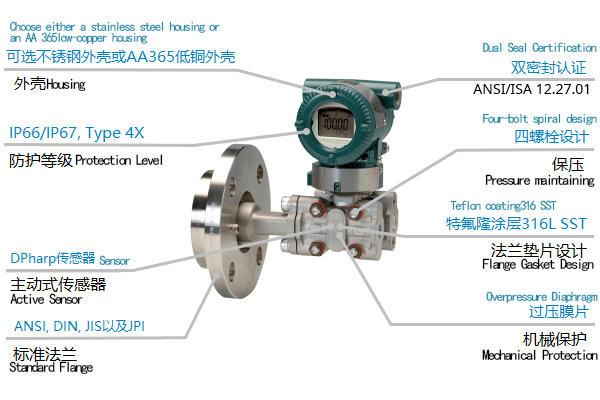

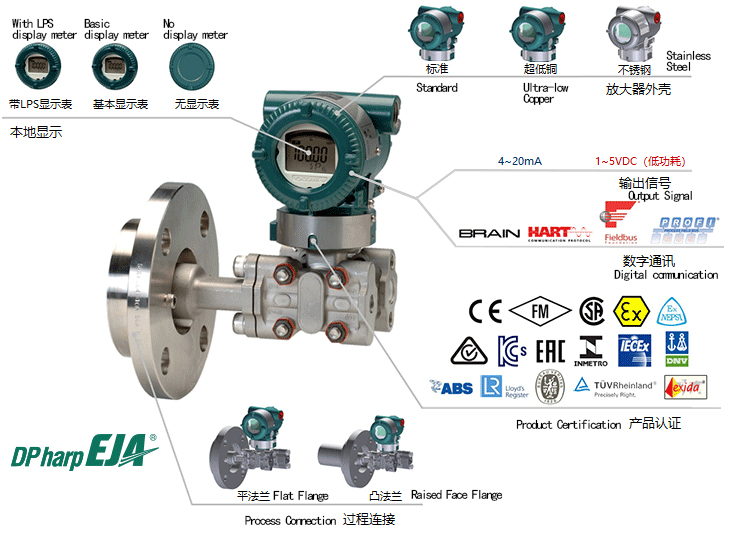

EJA210E Flange-Mounted Differential Pressure Transmitter
The EJA210E Flange-Mounted Differential Pressure Transmitter adopts single-crystal silicon resonant sensor technology and is suitable for measuring the liquid level and density of liquids that are prone to crystallization or precipitation. The EJA210E converts the measured differential pressure into a 4–20mA DC current signal for output. It can measure, display or remotely monitor static pressure, and features functions such as fast response, remote setting and self-diagnosis.
Functional Characteristics of the EJA210E:
- Accuracy: ±0.075%
- Stability: ±0.1% URL per year
(Note: “URL” is the abbreviation of “Upper Range Limit”, a professional term in the instrumentation field, referring to the maximum value within the transmitter’s measurement range.)
- Response time: 120 milliseconds
- Certifications: TUV and Exida SIL 2 / SIL 3
(Note: “SIL” stands for “Safety Integrity Level”, a standard for evaluating the safety performance of industrial control systems, with SIL 3 representing a higher safety level than SIL 2.)
- 10-segment signal curve characterization
- Local Parameter Setting (LPS)
- Supported communication protocols: HART 5/7, HART (1~5V DC) low-power type, FF Fieldbus, PROFIBUS PA and BRAIN.
