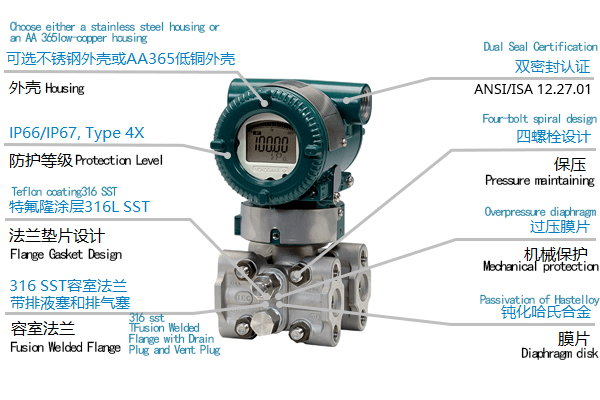

The EJX110A high-performance differential pressure transmitter adopts monocrystalline silicon resonant sensor technology, and is suitable for measuring the flow rate, liquid level, density and pressure of liquids, gases or vapors. The EJX110A converts the measured differential pressure into a 4–20 mA DC current signal for output, and can measure, display or remotely monitor static pressure. It features fast response, remote setting, self-diagnosis and other functions.
The functional characteristics of the EJX110A include:
- Accuracy: ±0.04% (optional accuracy: 0.025%)
- Stability: ±0.1% per 15 years
- Response time: 90 milliseconds
- Maximum operating pressure: 3,600 psi
- TUV and Exida SIL 2 / SIL 3 certifications
- Local Parameter Setting (LPS)

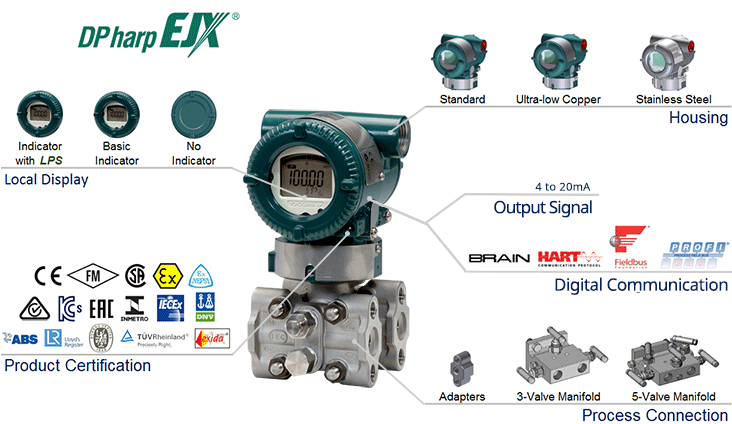

- Available communication protocols: HART 5/7, HART (1~5V DC) low-power type, FF Fieldbus, PROFIBUS PA, and BRAIN.
