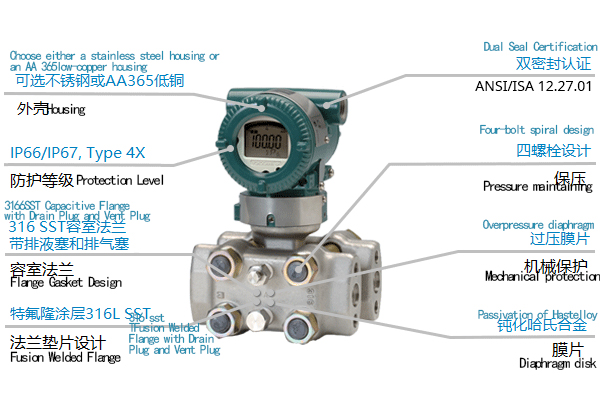

The EJX130A High Static Pressure Differential Pressure Transmitter adopts monocrystalline silicon resonant sensor technology and is suitable for measuring the flow rate, liquid level, density and pressure of liquids, gases or vapors. The EJX130A converts the measured differential pressure into a 4–20 mA DC current signal for output, and can measure, display or remotely monitor static pressure. It features functions such as fast response, remote setting and self-diagnosis.

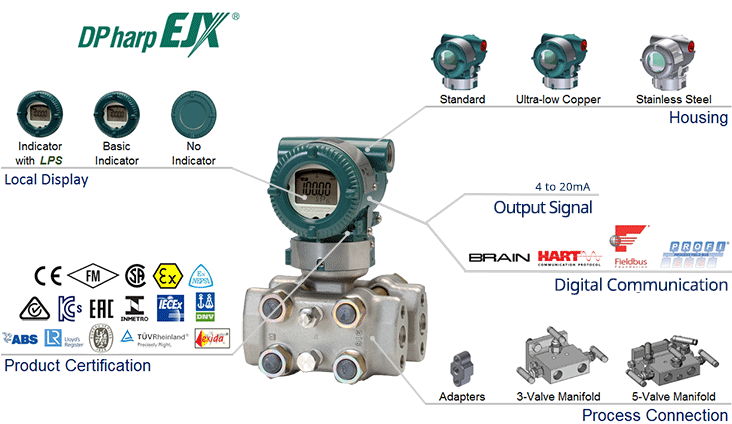

The functional characteristics of the EJX130A include:
- Accuracy: ±0.04%
- Stability: ±0.1% URL per 15 years
- Response time: 150 milliseconds
- Maximum operating pressure: 4,500 psi
- TUV and Exida SIL 2/3 certifications
- Local Parameter Setting (LPS)
- Available communication protocols: HART 5/7, HART (1~5V DC) low-power type, FF Fieldbus, PROFIBUS PA, and BRAIN
