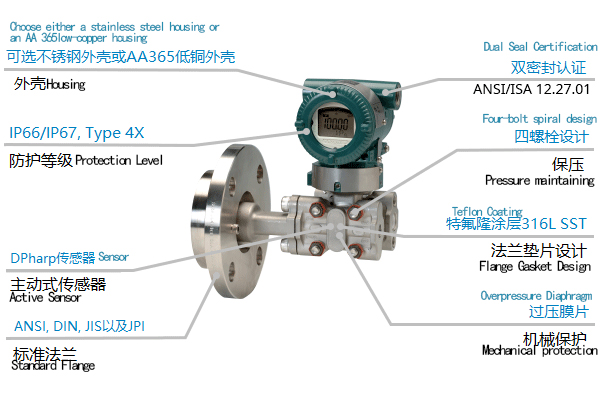

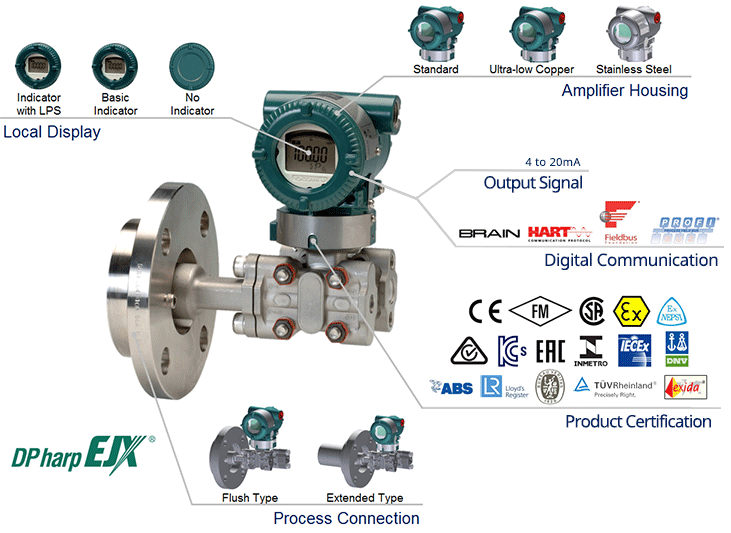

The EJX210A Flange-Mounted Differential Pressure Transmitter adopts monocrystalline silicon resonant sensor technology and is suitable for measuring the liquid level and density of liquids that are prone to crystallization or sedimentation. The EJX210A converts the measured differential pressure into a 4–20 mA DC current signal for output, and can measure, display or remotely monitor static pressure. It features functions such as fast response, remote setting and self-diagnosis.
The functional characteristics of the EJA210E include:
- Accuracy: ±0.075%
- Stability: ±0.1% URL per year
- Response time: 120 milliseconds
- TUV and Exida SIL2 / SIL3 certifications
- 10-segment signal curve characterization
- Local Parameter Setting (LPS)
- Available communication protocols: HART 5/7, HART (1~5V DC) low-power type, FF Fieldbus, PROFIBUS PA, and BRAIN
