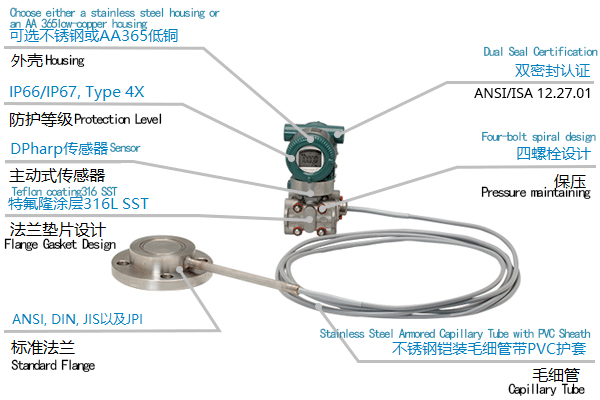

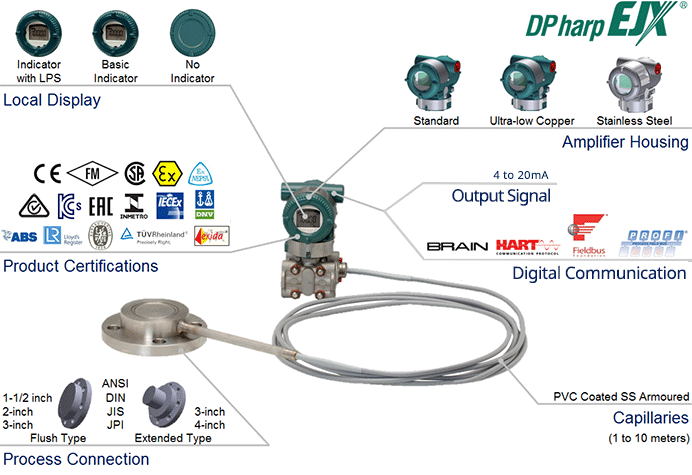

The EJX438A Diaphragm Sealed Pressure Transmitter adopts monocrystalline silicon silicon resonant sensor technology. It is suitable for measuring the pressure and liquid level of media with high/low temperature, high vacuum, high viscosity, and easy crystallization, and features functions such as fast response, remote setting, and self-diagnosis.
The functional characteristics of the EJX438A include:
- Accuracy: ±0.15%
- Response time: 200 milliseconds
- TUV and Exida SIL2 / SIL3 certifications
- Active density compensation for capillary filling fluid
- Local Parameter Setting (LPS)
- Available communication protocols: HART 5/7, HART (1~5V DC) low-power type, FF Fieldbus, PROFIBUS PA, and BRAIN.
