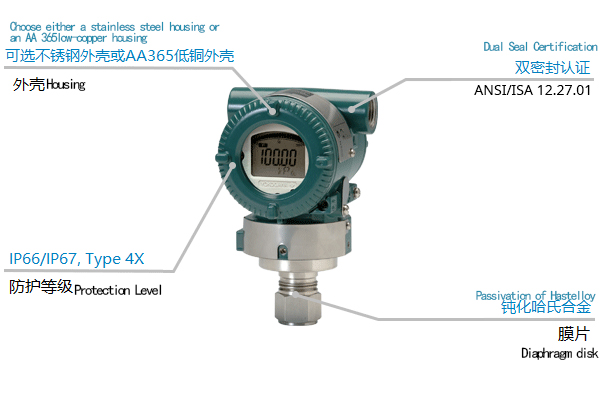

The EJX610A high-performance absolute pressure transmitter adopts single-crystal silicon resonant sensor technology and is suitable for measuring the pressure of liquids, gases, or vapors. The EJX610A converts the measured pressure into a 4–20mA DC current signal for output and features functions such as fast response, remote setting, and self-diagnosis.
The functional characteristics of the EJX610A include:
- Accuracy: ±0.04%
- Stability: ±0.2% URL/15 years
- Response time: 90 milliseconds
- Maximum working pressure: 15,200 psi
- Certifications: TUV and Exida SIL 2/3
- Local Parameter Setting (LPS)

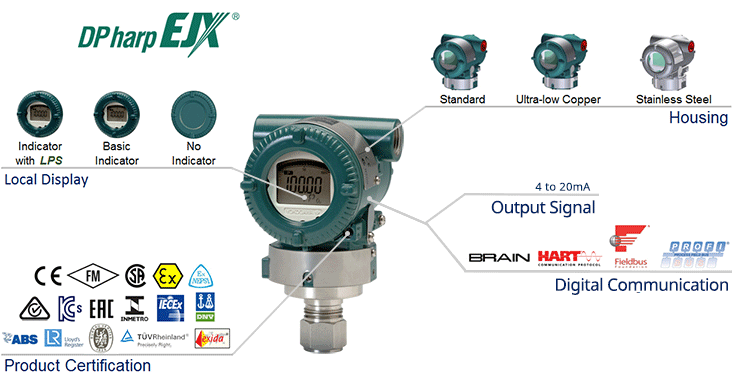

- Supported communication protocols: HART 5/7, HART (1~5V DC) low-power type, FF Fieldbus, PROFIBUS PA, and BRAIN.
