Product Specification Parameters
- Measurement Accuracy:
- Rod sensor: +/- 2 mm (0.08 in)
- Cable sensor: +/- 2 mm (0.08 in)
- Process Temperature: -20…+80 °C (-4…+176 °F)
- Process Pressure (Absolute Pressure) / Maximum Overpressure Limit: Vacuum…6 bar (Vacuum…87 psi)
- Maximum Measuring Distance:
- Rod sensor: 4 m (13 ft); minimum dielectric constant DK > 1.6
- Cable sensor: 12 m (40 ft); minimum dielectric constant DK > 1.6
- Main Wetted Parts:
- Rod sensor: 316L, PPS, Viton
- Cable sensor: 316, PPS, Viton
Application Fields

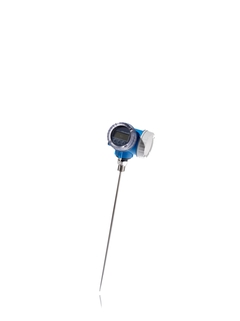

Levelflex FMP50 is a basic liquid level measurement instrument, suitable for measurement scenarios with low requirements for temperature, pressure or corrosion resistance. It is an ideal choice for basic applications such as storage tanks and public utilities. Levelflex FMP50 is used for continuous level measurement of liquids, slurries and sludges. The measured values are not affected by medium changes, temperature changes, gas blankets or steam.
Rod-type or cable-type measurement is optional.
Process connection: ¾” thread or reducing flange
Temperature: -20 to +80°C (-4 to +176°F)
Pressure: -1 to +6 bar (-14.5 to +87 psi)
Maximum measuring range: Rod type 4 m (13 ft), Cable type 12 m (39 ft)
Accuracy error: ±2 mm (0.08″)
Advantages
- Maintains reliable measurement even under variable measured products or process conditions.
- Integrated HistoROM data storage unit enables fast and convenient commissioning, maintenance, and diagnostics.
- Innovative multi-echo tracking technology delivers high reliability for measurement results.
- Hardware and software are developed in accordance with the IEC 61508 standard, meeting SIL3 level requirements.
- Heartbeat technology enables efficient and safe plant operation throughout the entire lifecycle.
- Seamless integration into control or asset management systems, with an intuitive guided operation concept (on-site or via the control system).
- Certified by authoritative global SIL and WHG tests, saving your time and economic costs.
