Product Specification Parameters
- Measurement Accuracy: +/- 2 mm (0.08 in)
- Process Temperature: -40…+200 °C (-40…+392 °F)
- Process Pressure (Absolute Pressure) / Maximum Overpressure Limit: Vacuum…25 bar (Vacuum…363 psi)
- Maximum Measuring Distance:
- Standard: 40 m (131 ft)
- With advanced dynamics: 60 m (197 ft)
- Main Wetted Parts: PTFE
Application Fields

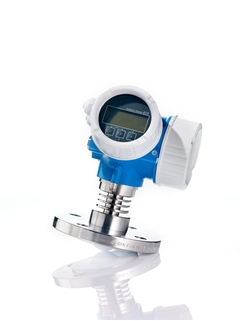

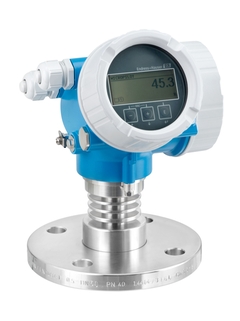

The Micropilot FMR52 features a flush-mounted horn antenna made of integral PTFE, offering excellent corrosion resistance, and is used for level measurement of highly corrosive liquids. The FMR52 sensor has obtained certifications such as ASME BPE, USP Class VI, 3-A, and EHEDG, and is also suitable for measurement scenarios with strict hygiene requirements in the food and life sciences industries. The Micropilot is used for continuous, non-contact level measurement of liquids, slurries, and sludges. Its measurement is not affected by changes in media, temperature fluctuations, gaseous media, or steam.

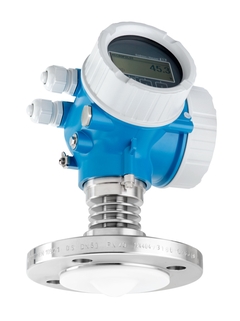

Flush-mounted installation with a horn antenna perfectly sealed by PTFE.
Process connection: Flush-mounted composite flange, process connections meeting hygiene requirements (clamp-type, 11851)
Temperature range: -196°C to +200°C (-320.8 to +392°F)
Pressure range: -1 to +25 bar (-14.5 to +362 psi)
Maximum measuring range: 40 m (131 ft); 60 m (197 ft) with advanced dynamic response
Accuracy error: ±2 mm
K-band: 26 GHz
Advantages
- The hardware and software development process complies with the IEC 61508 standard. A single instrument meets SIL2 requirements and reaches SIL3 under homogeneous redundancy conditions.
- Stable and reliable non-contact measurement, not affected by changes in media and process conditions.
- Integrated HistoROM data storage unit facilitates rapid commissioning, maintenance and diagnostics.
- High measurement reliability based on multi-echo tracking calculation, enabling accurate measurement even when there are obstacles inside the tank.
- Heartbeat technology enables efficient and safe plant operation throughout the entire lifecycle.
- Seamless integration into control or asset management systems, with an intuitive menu-guided operation concept (on-site or via the control system).
- Certified by authoritative global SIL and WHG tests, saving your time and economic costs.
