Product Specification Parameters
- Measurement Accuracy: +/- 6 mm (0.24 in)
- Process Temperature: -40…+150 °C (-40…+302 °F)
- Process Pressure (Absolute Pressure) / Maximum Overpressure Limit: Vacuum…40 bar (Vacuum…580 psi)
- Maximum Measuring Distance: Standard: 20 m (66 ft)
- Main Wetted Parts: PTFE, PVDF
Application Fields

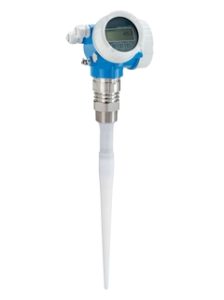

The Micropilot FMR53 is suitable for level measurement under simple working conditions, and its rod antenna is particularly well-suited for small process connections. The antenna and flange with PTFE coating have strong corrosion resistance. The Micropilot FMR53 is used for continuous, non-contact level measurement of liquids, slurries and sludges. The measurement is not affected by medium changes, temperature changes, gaseous media or steam.
It is especially suitable for small process connections, and the PTFE sensor can be used with chemically corrosive media.
Process connection: 1½” thread or flange
Temperature range: -40 to +150°C (–40 to +302°F)
Pressure range: -1 to +40 bar (–14.5 to +580 psi)
Maximum measuring range: 20 m (66 ft)
Accuracy error: ±6 mm
C-band: 6 GHz
International explosion-proof certification, WHG overflow protection, SIL, 5-point linear protocol
Advantages
- Stable and reliable measurement, not affected by changes in media and process conditions.
- Integrated HistoROM data storage unit facilitates rapid commissioning, maintenance and diagnostics.
- High measurement reliability based on multi-echo tracking calculation, enabling accurate measurement even when there are obstacles inside the tank.
- The hardware and software development process complies with the IEC 61508 standard; a single instrument meets SIL2 requirements, and reaches SIL3 under homogeneous redundancy conditions.
- Heartbeat technology enables efficient and safe plant operation throughout the entire lifecycle.
- Seamless integration into control or asset management systems, with an intuitive menu-guided operation concept (on-site or via the control system).
