Product Specification Parameters
- Measurement Accuracy: +/- 3 mm (0.12 in)
- Process Temperature: -40…+80 °C (-40…+176 °F)
- Process Pressure (Absolute Pressure) / Maximum Overpressure Limit: Vacuum…3 bar (Vacuum…43.5 psi)
- Maximum Measuring Distance: 30 m (98 ft)
- Main Wetted Parts: PP, UP
Application Fields

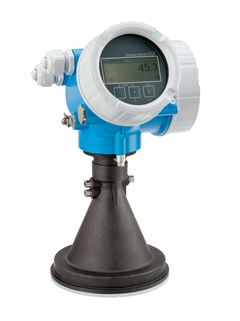

The Micropilot FMR56 is specifically designed for level measurement under light-duty working conditions such as solid material silos or containers. The Micropilot is suitable for continuous, non-contact level measurement of bulk solids like powders and granules. Measurement values are not affected by dust, feeding noise, temperature changes, or gaseous media.
The horn antenna with PP coating can be easily aligned with the solid surface via a mounting bracket or a sealed turntable.
Process connection: Mounting bracket or loose flange
Temperature range: -40 to +80°C (-40 to +176°F)
Pressure range: -1 to 3 bar (-14.5 to 43.5 psi)
Maximum measuring range: 30 m (98 ft)
K-band: 26 GHz
International explosion-proof certification, SIL, 5-point linear protocol
Advantages
- Stable and reliable measurement, not affected by changes in media and process conditions.
- Integrated HistoROM data storage unit facilitates rapid commissioning, maintenance and diagnostics.
- High measurement reliability based on multi-echo tracking calculation, enabling accurate measurement even when there are obstacles inside the tank.
- The hardware and software development process complies with the IEC 61508 standard; a single instrument meets SIL2 requirements and reaches SIL3 under homogeneous redundancy conditions.
- Heartbeat technology enables efficient and safe plant operation throughout the entire lifecycle.
- Seamless integration into control or asset management systems, with an intuitive menu-guided operation concept (on-site or via the control system).
- Certified by authoritative global SIL and WHG tests, saving your time and economic costs.
