Features/Applications

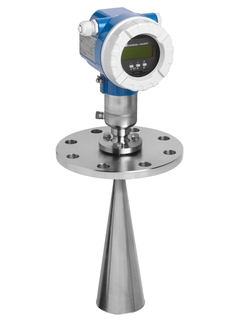

Non-contact level measurement for powdered and granular bulk solids
Features
Air purge standard head
Power Supply/Communication
2-wire HART
Frequency
~ 26 GHz
Antenna
“DN200/8″” parabolic antenna; DN80/3″”, DN100/4″” horn antennas”
Measurement Accuracy
±15 mm (or 0.04% of the measuring range, whichever is larger)
Ambient Temperature
-40…+80℃
Process Temperature
-40…+200℃
Process Pressure (Absolute Pressure) / Maximum Overpressure Limit
Vacuum up to 16 bar
Main Wetted Parts
PEEK, 1.4435, 1.4404, 316L
Process Connection
“R1 1/2″”, NPT1 1/2″”; EN flanges: DN80, DN100; ANSI flanges: 3″”, 4″”; JIS flanges: 80A, 100A; UNI flanges: UNI DN100/4″”/100A, UNI DN200/8″”/200A”
Dead Band Distance
Antenna length + 400 mm
Maximum Measuring Distance
70 m
Communication
4 … 20 mA HART, PROFIBUS PA
Certifications
ATEX, FM, CSA
Options
“Remote display; 250 mm/10″” or 450 mm/18″” antenna extension tube; aligner (± 15°)”
Application Limitations
Dk < 1.6
