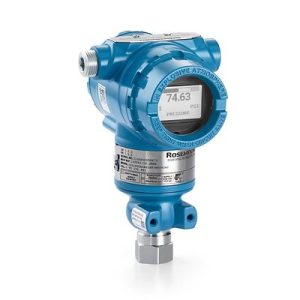

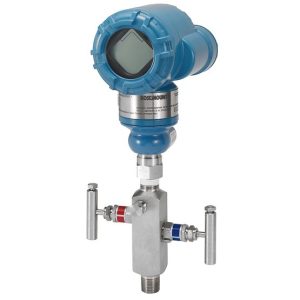

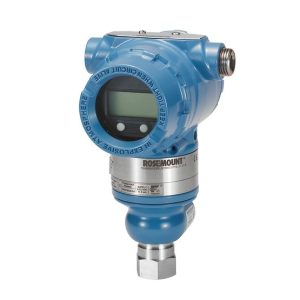

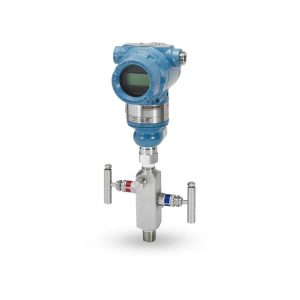

Reliable measurement of pressure and liquid level with Rosemount 3051 direct-connected pressure transmitter. This excellent pressure transmitter can provide 10-year stability and 0.04% range accuracy after installation, providing you with the information you need to run, control and monitor the process. Equipped with a graphic backlit display, Bluetooth® connection and enhanced software functions for fast data access.

Specifications
The range ratio is up to 150:1.
Communication protocol 4-20ma hart, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V low-power hart.
measuring range
Gauge pressure up to 1378,95bar (20000psig)
The absolute pressure is as high as 1378,95bar (20000psia).
Process liquid contact material
316L stainless steel, alloy C-276, alloy 400, tantalum, gold-plated 316L stainless steel and gold-plated alloy 400.
diagnose
Basic diagnosis, process alarm, loop integrity diagnosis, and pressure guide pipe blockage diagnosis.
Line range
Internal antenna (225m)
