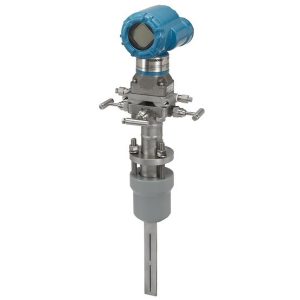

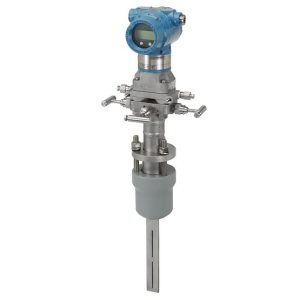

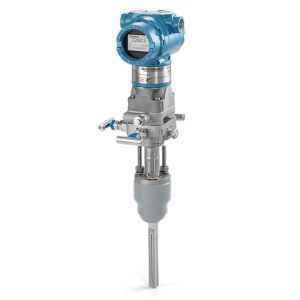

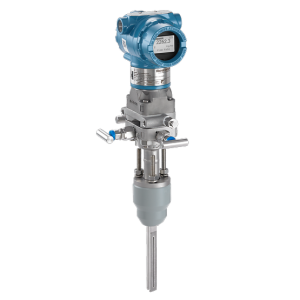

Rosemount 3051CFA Annubar flowmeter has the performance of meeting industry standards, and reliable flow measurement is realized through various communication protocols (including WirelessHART® technology). The sensor design can keep a small cross-sectional area in the pipeline, reduce the permanent pressure loss, and obtain the measured values of flow and pressure by slotting pressure. Equipped with a graphic backlit display, Bluetooth® connection, traffic-specific configuration, and enhanced software functions for fast data access.

specifications

The range ratio is as high as 150:1(8:1 flow range ratio).
Measuring range: differential pressure up to 1000inH2O (2.48bar).
Communication protocol: 4-20 ma hart, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V low power hart.
Pipe diameter 2 to 96in.(50 to 2440mm)
Process liquid contact material
316L SST, alloy C-276
diagnose
Basic diagnosis, process alarm, loop integrity diagnosis, and pressure guide pipe blockage diagnosis.
Wireless range
Internal antenna (225m)
