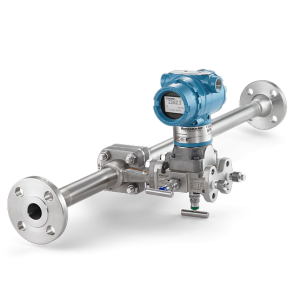

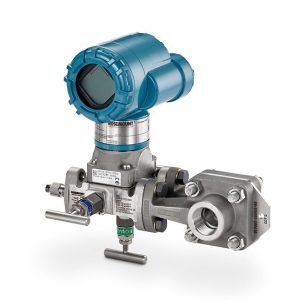

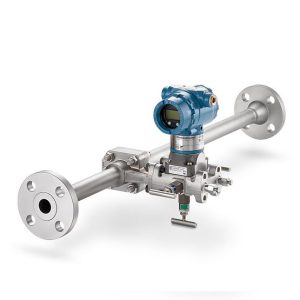

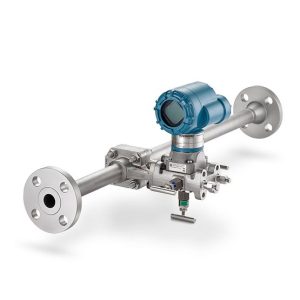

Rosemount 3051CFP Wireless-Integral orifice flowmeter has integrated orifice primary components and is easy to install. It is the leading flow measurement solution in the industry. The flowmeter adopts a self-centering integrated orifice plate and provides a straight pipe section for installation, which can carry out high-precision flow measurement in small-sized pipes (15-40mm or 0.5-1.5in). Equipped with a graphic backlit display, Bluetooth connection, traffic-specific configuration and enhanced software functions designed to quickly access the required data. The device provides a variety of communication protocols, including WirelessHART®.
specifications
The range ratio is as high as 150:1(8:1 flow range ratio).
Measuring range: differential pressure up to 1000inH2O (2.48bar).
Communication protocol: 4-20 ma hart, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V low power hart.
0.5 to 1.5in.(15 to 40mm) pipe diameter.
Process liquid contact material
Body: 316L stainless steel.
Orifice plate: 316L stainless steel, alloy C-276, alloy 400.
diagnose
Basic diagnosis, process alarm, loop integrity diagnosis, and pressure guide pipe blockage diagnosis.
Wireless update rate
1 second to 60 minutes, user selectable.
Wireless range
Internal antenna (225m)
