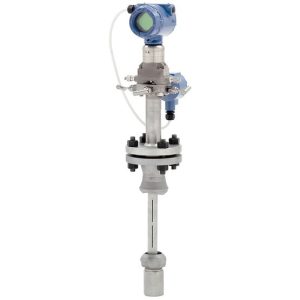

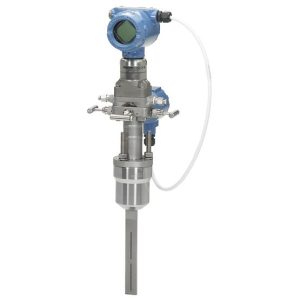

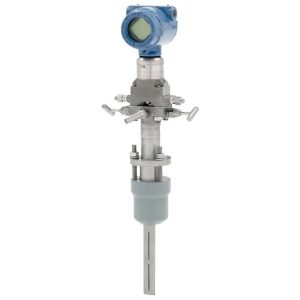

Rosemount 3051SFA Annubar flowmeter is equipped with patented averaging pitot tube, which can provide excellent measurement accuracy in a wide flow range, and it is a quality solution. The patented T-shaped sensor is equipped with an integrated thermal sleeve, which can obtain the measured value through a single pipe hole, while maintaining a small size in the pipeline, which can reduce the permanent pressure loss and save energy consumption. The flowmeter also has built-in flow calculation, which is used to fully compensate the mass flow measurement, and provides a variety of communication protocols, including WirelessHART®.

Specifications
The range ratio is as high as 200:1(14:1 flow range ratio).
Measuring range: differential pressure is as high as 2.48bar (1000inH2O), absolute pressure is as high as 250.00bar (3626psia), and gauge pressure is as high as 250.00bar (3626psig).
Pipe diameter 2 to 96in.(50 to 2440mm)
Output differential pressure, static pressure, process temperature, scale variable, mass flow, volume flow and energy flow.

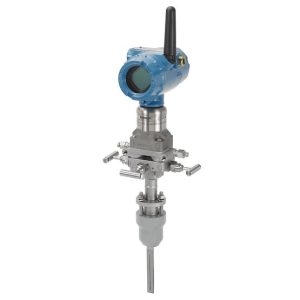

Communication protocol 4-20mahart, WirelessHART®, FOUNDATION™ Field.
