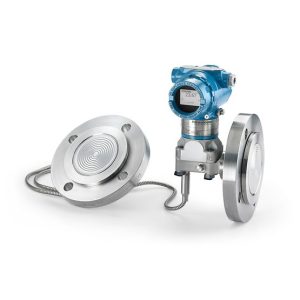

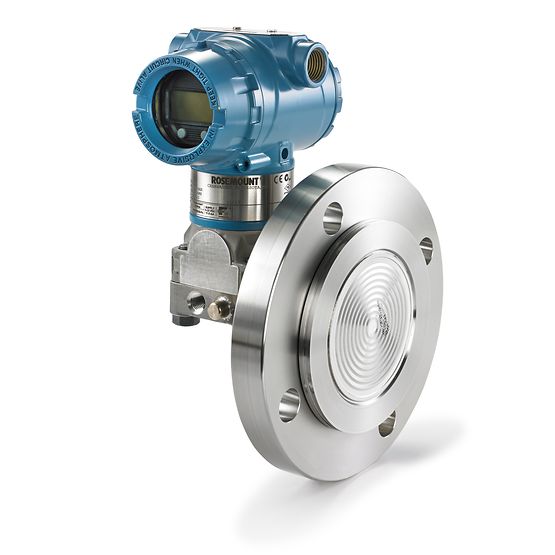

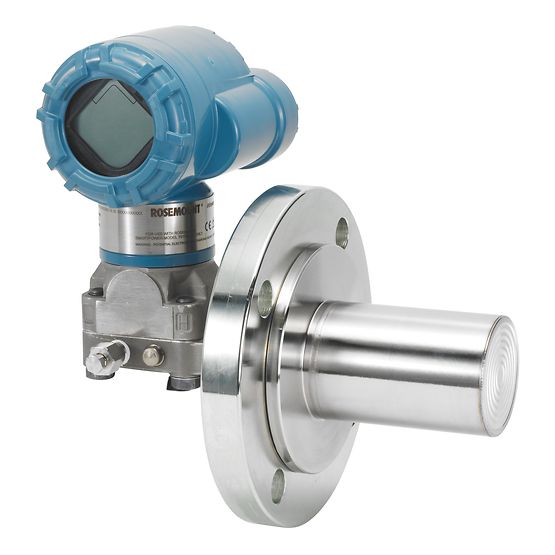

Rosemount 3051L wireless-level- transmitter can be directly installed or used with Tuned-System™ components. Compared with traditional devices, it has optimized performance, reduced temperature influence by 10-20% and shortened response time by more than 80%. Built-in diagnostic function can detect electrical circuit problems and provide alarms such as corrosion, water ingress in the cover or unstable power supply. Equipped with a graphic backlit display, Bluetooth® connection, liquid level specific configuration, and enhanced software functions for fast data access.
specifications
Maximum working pressure is up to 300psi (20.68bar).
The process temperature range is based on the filling liquid:
Maximum 205°C (401°F) and minimum-105 c (-157 f)
Communication protocol 4-20ma hart, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V low-power hart.
Sealing system type: direct installation and adjustment system.
Transmitter connection: welding repairable.
Process connectors: flange type: ANSI/ASME, EN/DIN, JIS.
Material of process liquid contact: 316L SST, alloy C-276, tantalum.
Diagnosis: basic diagnosis, process alarm, loop integrity diagnosis, and pressure guide pipe blockage diagnosis.
Wireless update rate: 1 second to 60 minutes, user selectable.
Wireless range: internal antenna (225m)
