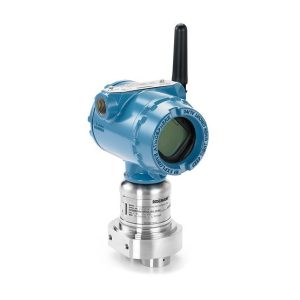

Rosemount 3051S wireless high static differential pressure transmitter adopts WirelessHART® technology and SuperModule™ design, which has excellent performance and can withstand static pressure up to 15000 psi (1034 bar). The transmitter uses Rosemount Coplanar™ technology, which reduces the installation weight and can measure differential pressure and equipment temperature. The wireless transmitter can provide accurate data in harsh conditions with cone-shaped and threaded direct connectors suitable for high static pressure conditions.

specifications

The range ratio is up to 150:1.

Communication protocol WirelessHART®

Measuring range The differential pressure is up to 150 psi (623 bar), and the maximum working pressure is up to 15000 psi (1034 bar).

Process liquid contact material C-276

Diagnosis basic diagnosis, loop integrity, process intelligence, plug-in pressure pipe

The update rate is 1 second to 60 minutes, which can be selected by users.

Long wireless range (225 m), extended range (800 m), split (225 m) and high gain split (1 km).
