Product description

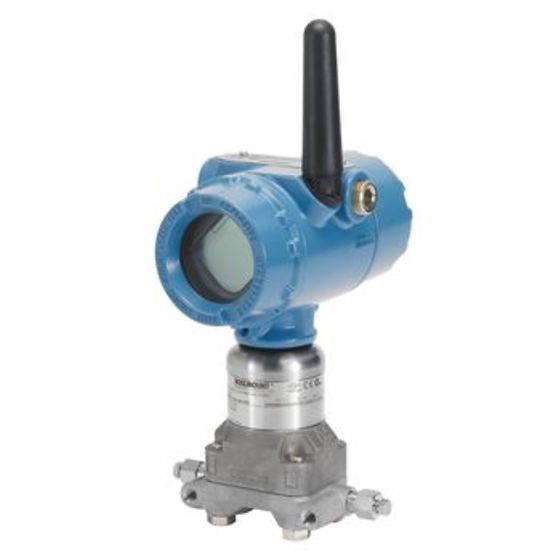

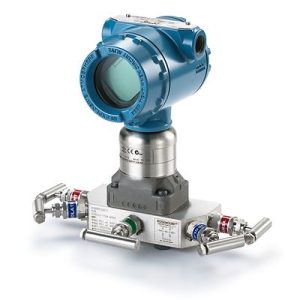

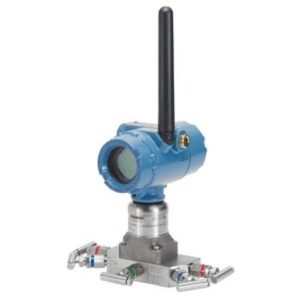

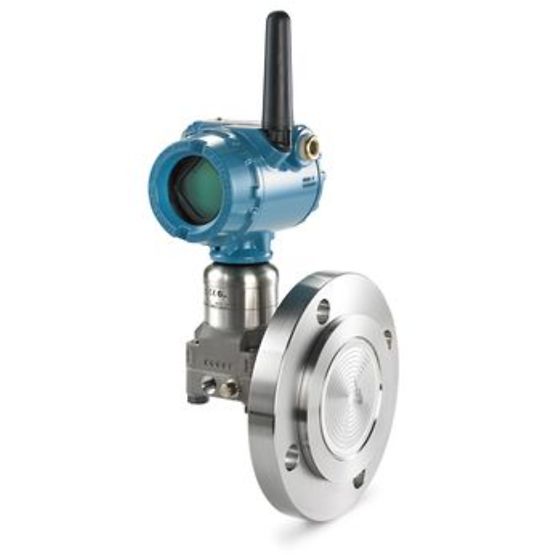

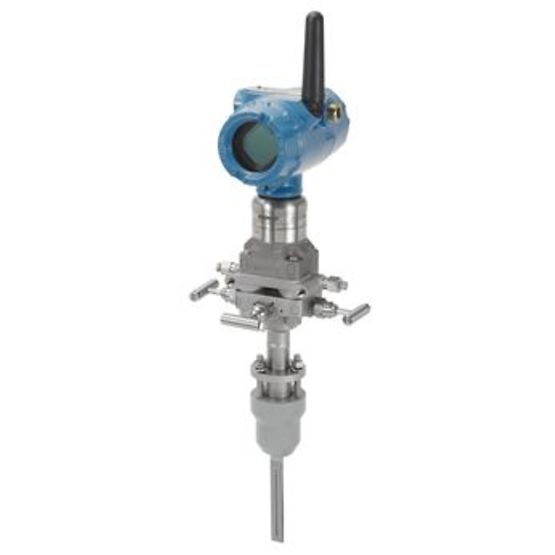

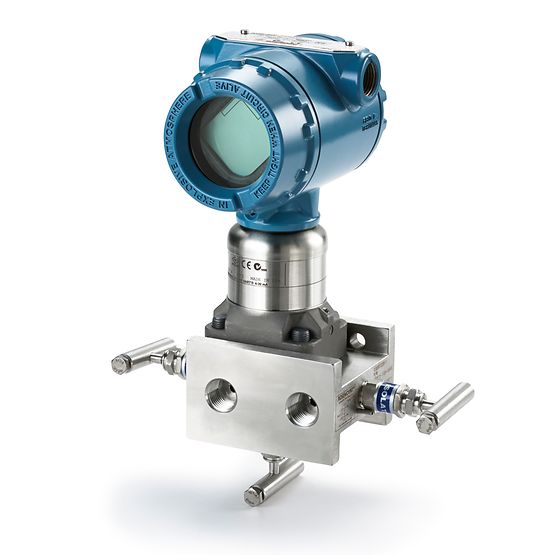

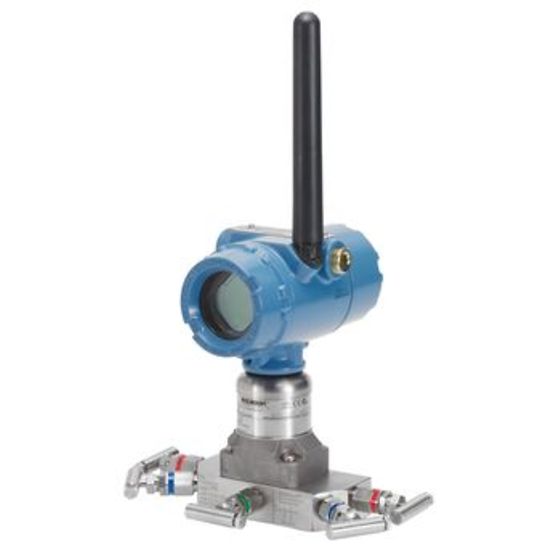

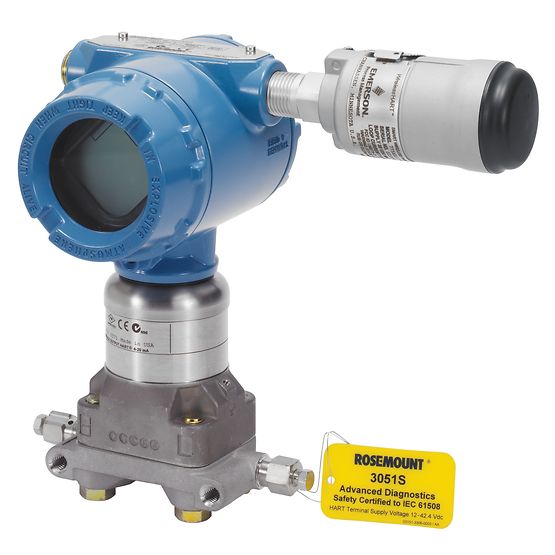

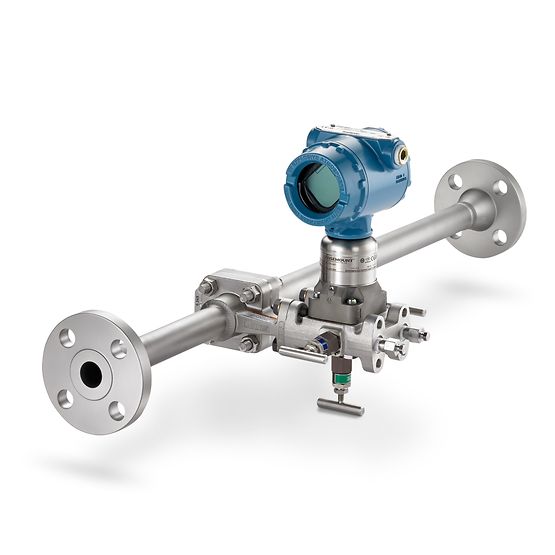

Rosemount 3051S Coplanar™ pressure transmitter is designed with coplanar technology, which is the preferred solution for pressure, flow and liquid level measurement. The extensible platform adopts wired and WirelessHART® communication protocols, which can be seamlessly integrated with valve groups, primary components and sealing solutions, optimizing performance for measuring differential pressure, gauge pressure and absolute pressure. Through the SuperModule™ platform, the transmitter can resist the influence of overpressure and pipeline pressure, thus maintaining excellent performance.

Specifications

The range ratio is up to 200:1.

Communication protocols 4-20 mA HART, WirelessHART® and FOUNDATION Fieldbus.

The differential pressure is as high as 137.89 bar(2000psi), the gauge pressure is as high as 137.89 bar(2000psig) and the absolute pressure is as high as 275.79 bar(4000psia).

The liquid contact materials for the process are 316L stainless steel, alloy C-276, alloy 400, tantalum, gold-plated alloy 400 and gold-plated 316L stainless steel.

Diagnosis basic diagnosis, loop integrity, process intelligence, plug-in pressure pipe

The wireless update rate is 1 second to 60 minutes, which can be selected by users.

The service life of the power module is up to 10 years, and it can be replaced on site (ordered separately).

Long wireless range (225 m), extended range (800 m), split (225 m) and high gain split (1 km).
