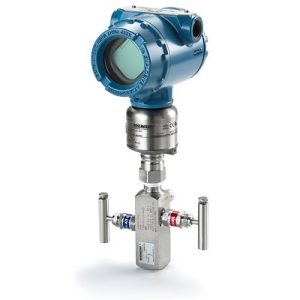

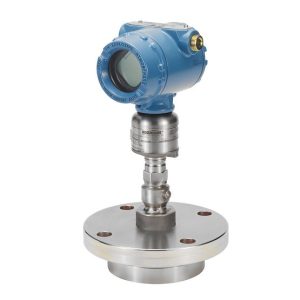

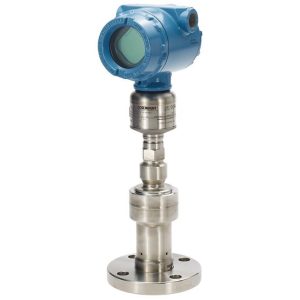

Rosemount 3051S In-Line Pressure Transmitter can optimize performance and is a first-class solution in the industry. This extensible SuperModule™ platform can reduce process variation and maintenance, so it has excellent performance in gauge pressure and absolute pressure measurement. The directly connected pressure transmitter is suitable for direct threaded connection, valve group or sealing system scheme, and can be connected with the process to realize rapid and cost-effective installation.

specifications
The range ratio is up to 200:1.
Communication protocols 4-20 mA HART, WirelessHART® and FOUNDATION fieldbus.
Measuring range: The gauge pressure is as high as 10000psi (689.47 bar) and the absolute pressure is as high as 10000psia (689.47 bar).
Process liquid contact material 316L SST, alloy C-276.
