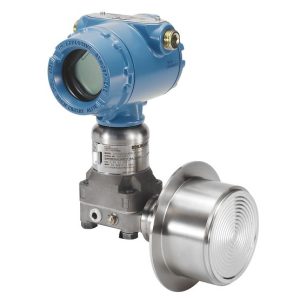

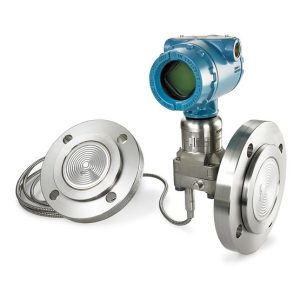

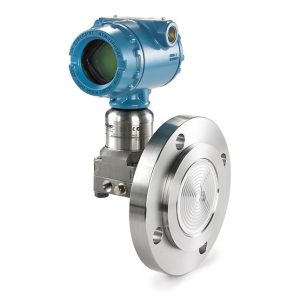

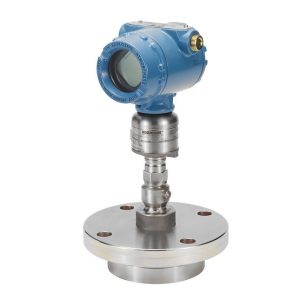

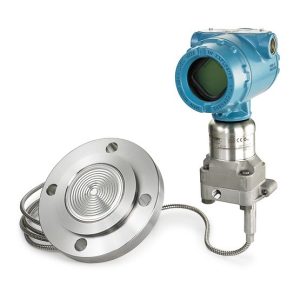

Rosemount 3051SAL liquid level transmitter is a leading solution in the industry, which can make reliable pressure measurement under extreme conditions and improve the liquid level measurement ability of pressurized and ventilated storage tanks. The transmitter has passed the safety certification, and has advanced diagnostic function, which can deeply understand the situation. You can choose direct installation, remote installation, balancing system and Tuned-System™ components, which can meet various requirements and process requirements of liquid level application.

Specifications

The maximum working pressure is up to 10,000psi (689.48 bar).

The process temperature range is based on the filling liquid: the highest is 770°F (410°C), and the lowest is-157 F (-105 C).

Communication protocol 4-20mahart, WirelessHART®, FOUNDATION™ fieldbus.

Sealing system types: direct installation, remote installation, adjustment system and balance system.

The transmitter connector can be repaired and welded completely.

Process connector

Flange type: ANSI/ASME, EN/DIN, GOST and JIS.

Thread type: NPT, DIN, ISO Sanitary type

Process liquid contact material

316L stainless steel, alloy C-276, alloy 400, tantalum, gold-plated alloy 400, and gold-plated 316L stainless steel. See the complete specifications for a complete material list.

Diagnose

Basic diagnosis, loop integrity, process intelligence, plug-in pressure pipe
