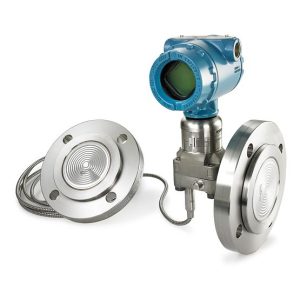

Rosemount 3051SAL  level transmitter is a leading solution in the industry, which can make reliable pressure measurement under extreme conditions and improve the liquid level measurement ability of pressurized and ventilated storage tanks. The transmitter has passed the safety certification, and has advanced diagnostic function, which can deeply understand the situation. You can choose direct installation, remote installation, balancing system and Tuned-System™ components, which can meet various requirements and process requirements of liquid level application.

specifications
The maximum working pressure is up to 10,000psi (689.48 bar).
The temperature range is based on the filling liquid: the highest is 770°F (410°C), and the lowest is-157 F (-105 C).
Communication protocol 4-20mahart, WirelessHART®, FOUNDATION™ fieldbus.

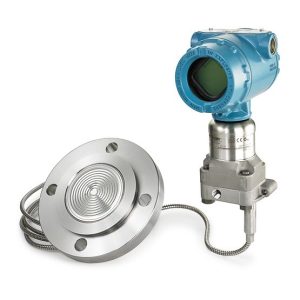

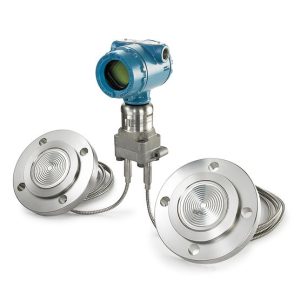

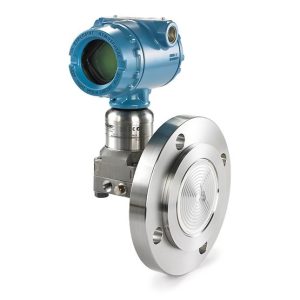

Sealing system types: direct installation, remote installation, adjustment system and balance system.
Transmitter connector: repairable welding, full welding.
Process connector:
Flange type: ANSI/ASME, EN/DIN, GOST and JIS.
Thread type: NPT, DIN, ISO

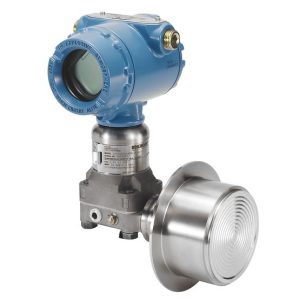

Sanitary type
Materials for liquid contact in the process: 316L stainless steel, alloy C-276, alloy 400, tantalum, gold-plated alloy 400, and gold-plated 316L stainless steel. See the complete specifications for a complete material list.
