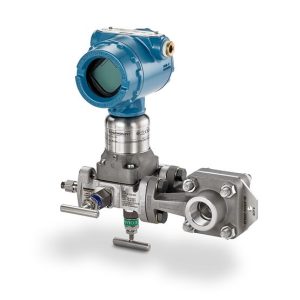

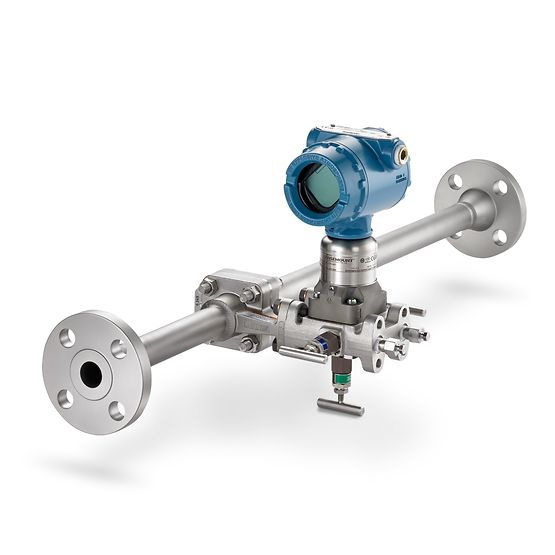

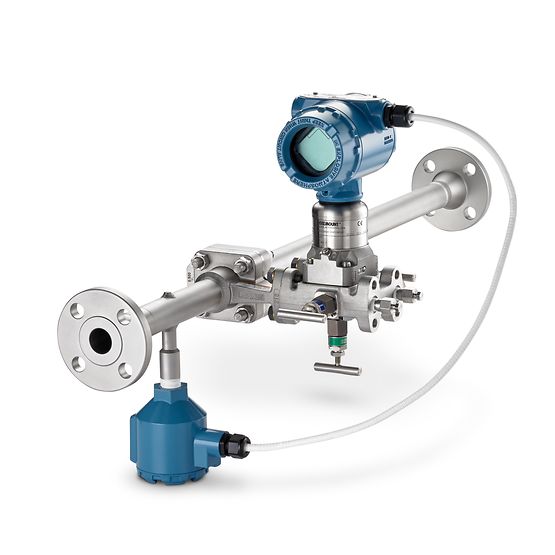

Rosemount 3051SFP integrated orifice flowmeter is an excellent multivariable device, which includes customized integrated orifice primary components. The operating assembly of this flowmeter is easy to install, and its design is convenient for high-precision flow measurement under small pipeline size (0.5-1.5in. or 15-40mm). The device also has a built-in flow calculation, which is used to fully compensate the mass flow measurement, and provides a variety of communication protocols, including WirelessHART®.

specifications
The range ratio is as high as 200:1(14:1 flow range ratio).
Measuring range: differential pressure is as high as 2.48bar (1000inH2O), absolute pressure is as high as 250.00bar (3626psia), and gauge pressure is as high as 250.00bar (3626psig).
0.5 to 1.5in.(15 to 40mm) pipe diameter.
Outputs: differential pressure, static pressure, process temperature, scale variables, mass flow, volume flow and energy flow.
protocol

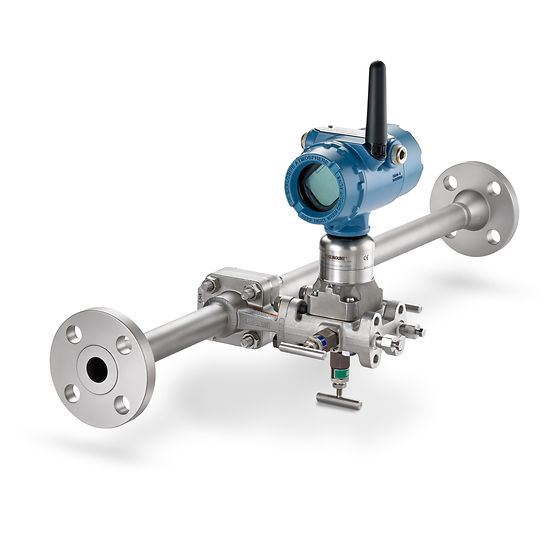

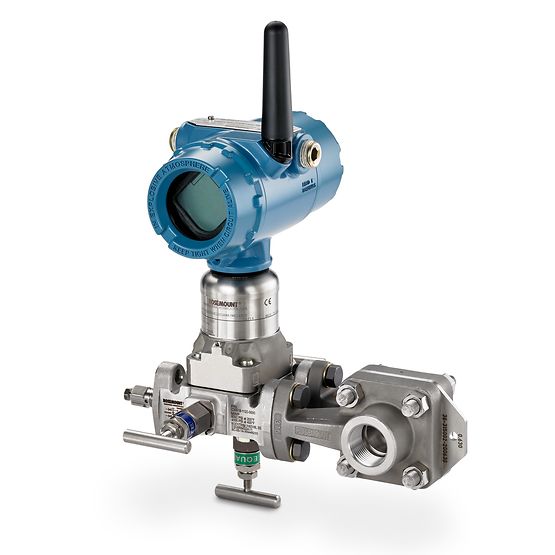

4-20 mA HART®、WirelessHART®、FOUNDATION™ Fieldbus
Process liquid contact material: 316 stainless steel
