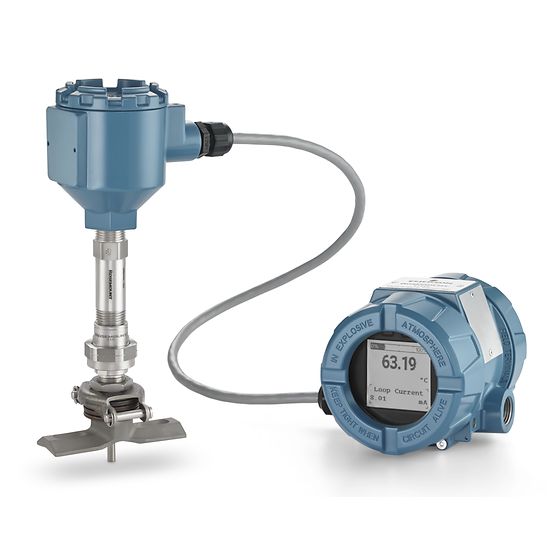

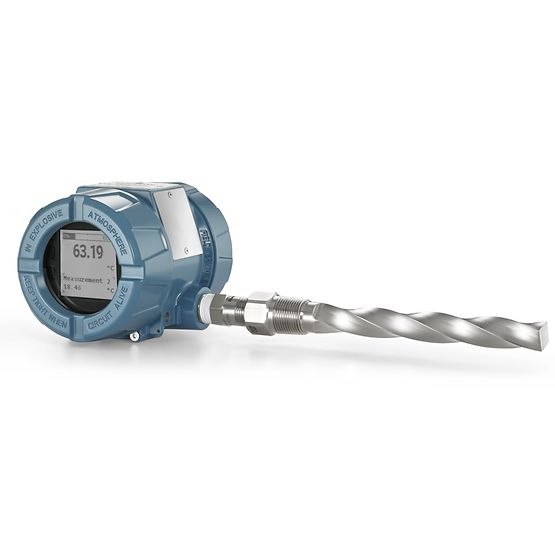

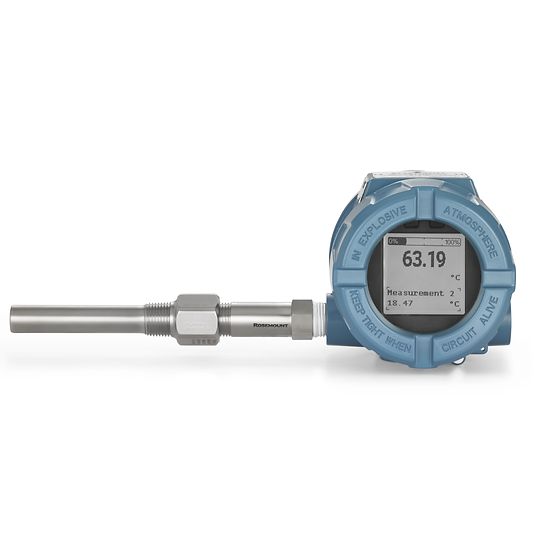

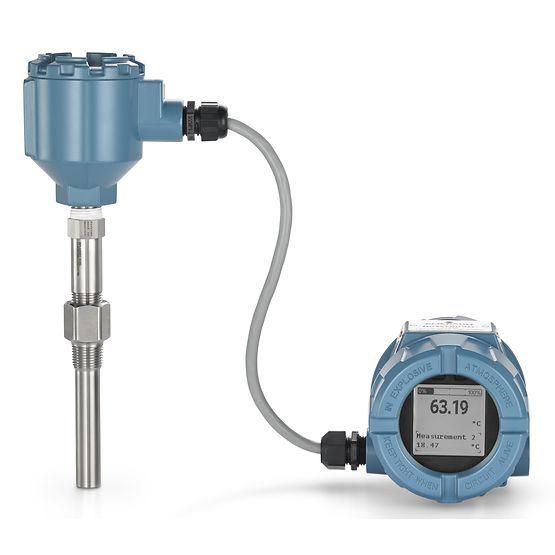

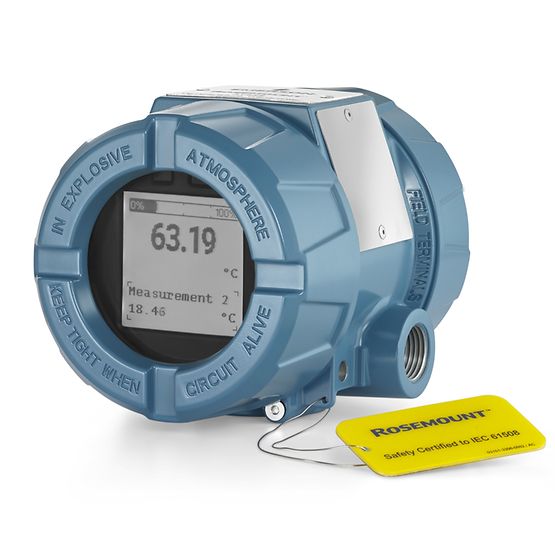

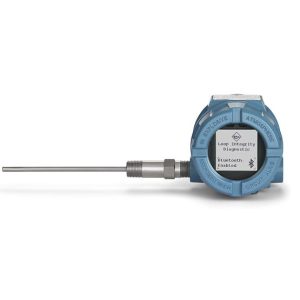

Rosemount 3144S temperature transmitter provides excellent accuracy, stability and reliability for your temperature measurement. It provides plug-and-play sensor configuration based on ReadyConnect™ technology and Bluetooth® wireless technology, as well as comprehensive diagnosis service from sensor to control room. When using the Rosemount 3144S temperature transmitter equipped with Rosemount X-Well technology, the process temperature can be measured in high temperature applications without thermal sleeve.
Specifications

input
Dual sensor and single sensor assembly, supporting universal sensor input (RTD, T/C, mV, ohms).
output signal
4-20 ma/hart protocol
shell
Double-chamber field installation
Display/interface
Large-size backlit graphical LCD display with quick service button, supporting multi-line display and percentage range chart.
precision
0.05 c reference accuracy
stability
0.25 c, 20 years (Ultra performance) or 10 years (Classic performance)
diagnose
Basic diagnosis, loop integrity, RTD measurement protection, Hot Backup™ function, sensor drift alarm, thermocouple aging, configurable process alarm.
Calibration option
Transmitter-sensor matching (Callendar-Van Dusen constant)
