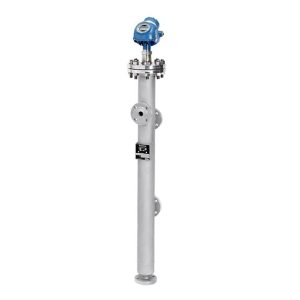

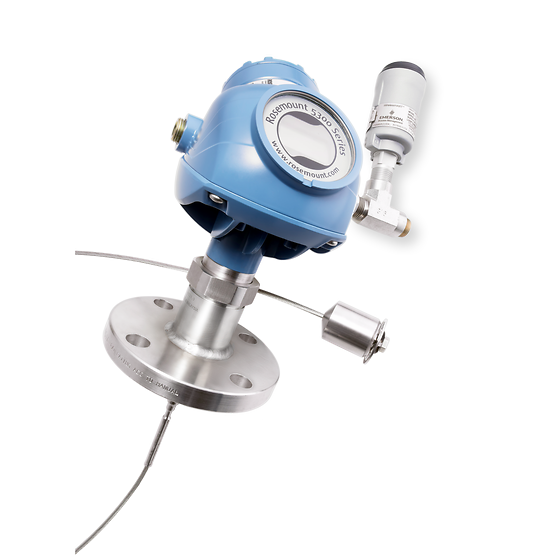

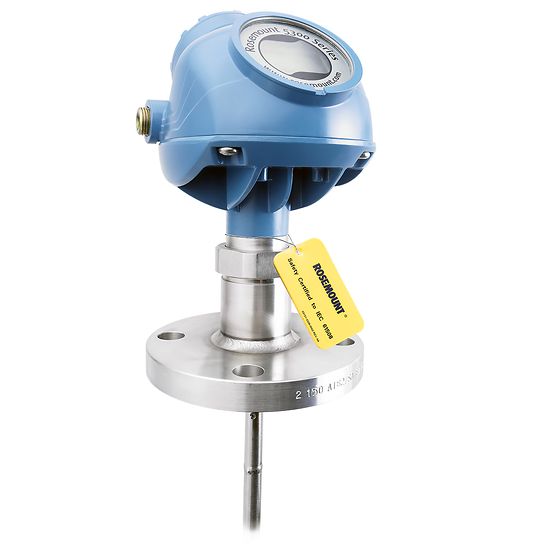

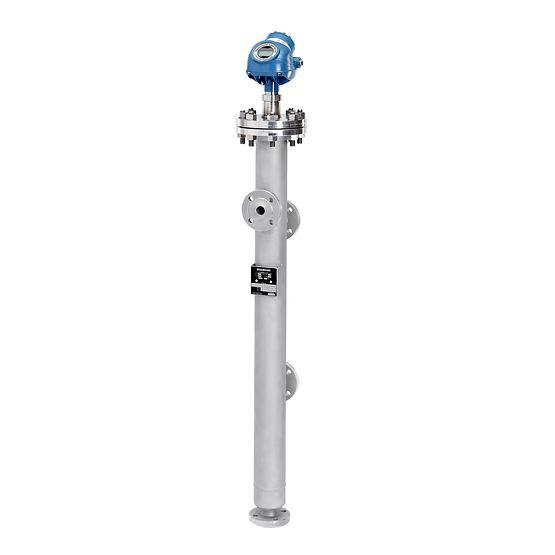

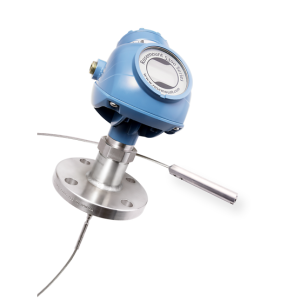

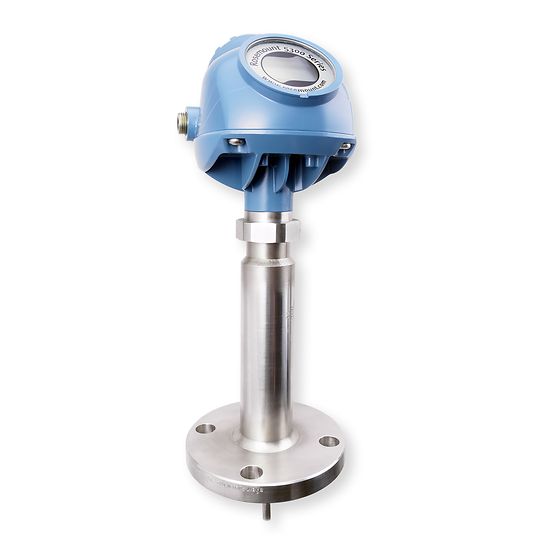

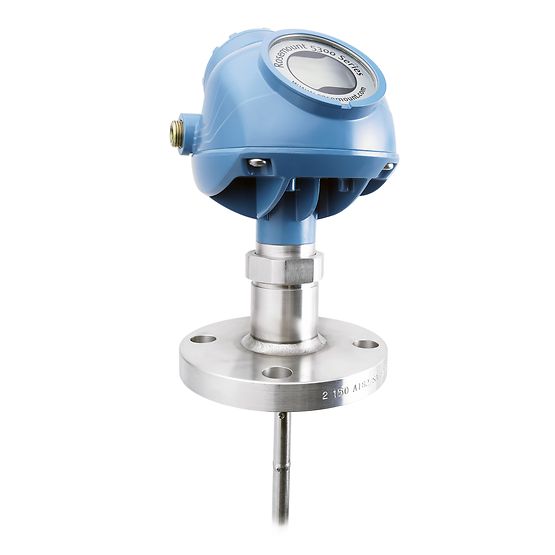

The Rosemount 5300 Level Transmitter is suitable for challenging measurement of liquids, slurries, and solids, delivering exceptional reliability and safety in level and interface applications.
The Rosemount 5300 offers multiple advantages such as easy installation and no calibration requirement, and it is not affected by process conditions. Certified for SIL 2, this radar transmitter becomes the top choice for your safety-critical applications. Its robust construction and built-in powerful diagnostic functions allow you to focus on what matters most to you—the plant.
Specifications
- Accuracy: ± 3 mm (0.12 in.)
- Repeatability: ± 1 mm (0.04 in.)
- Measurement Range: Maximum 50 m (164 ft)
- Operating Pressure: Full vacuum to 345 bar (full vacuum to 5000 psi)
- Operating Temperature: -196 to 400 °C (-320 to 752 °F)
- Communication Protocols: 4-20 mA/HART®, Foundation™ Fieldbus, Modbus®
- Safety: SIL 2 IEC 61508 Certified
- Overfill Protection: TÜV Tested and WHG Certified
- Diagnostics: Enhanced diagnostic functions for predictive maintenance
- Probe Types: Rigid single-wire, segmented single-wire, flexible single-wire, rigid twin-wire, flexible twin-wire, coaxial type, PTFE-coated probes, steam probes
